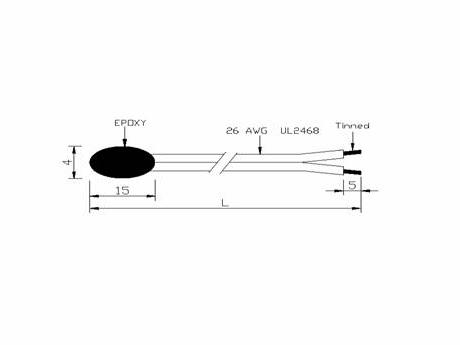

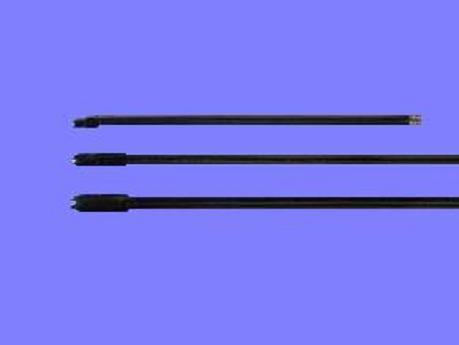

A.SR Series (Epoxy Encapsulated Sensor)

Characteristics:
Epoxy Encapsulated, Short Thermal Time Constant, Quick Response, Low Cost, Good Dampness Proofing, Reliable Performance

Application:
Air Conditioner, Air Temperature Measurement and Display

Technical Parameter:
Working Temperature Range : -40℃~105℃
Dissipation Coefficient（δ）: 4.2mW/℃
Thermal Time Constant（τ）: ＜20s
(Special requested Resistance, B value and Tolerance could be offered)

B. SP Series (Non-Metal Materials Encapsulated Sensor)

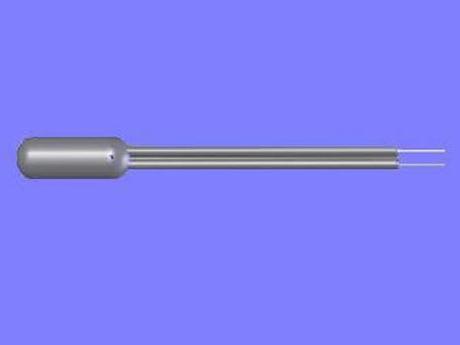

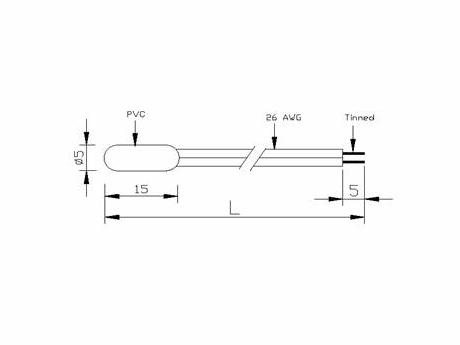

⑴SPJ Type (Plastic Injected Sensor)

Characteristics:
Plastic injected encapsulation, Good airproof, Short thermal time constant, Quick response, Low cost, Good dampness proof, Reliable performance

Application:
Icebox, Air-conditioner, Water tank

Technical Parameter:
Working Temperature Range: -40℃~105℃
Dissipation Coefficient（δ）: 3.7mW/℃
Thermal Time Constant（τ）: ＜20s
Airproof Grade: IP67
(Special requested Resistance, B value and Tolerance could be offered)

B. SP Series (Non-Metal Materials Encapsulated Sensor)
⑵SPT Type (Plastic Cap Encapsulated Sensor)

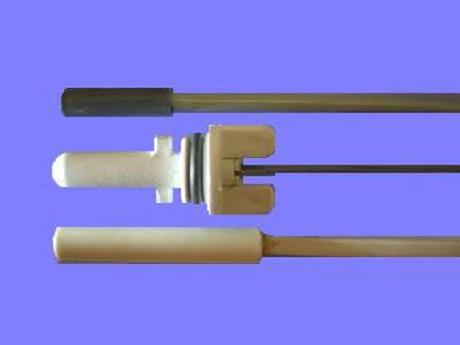

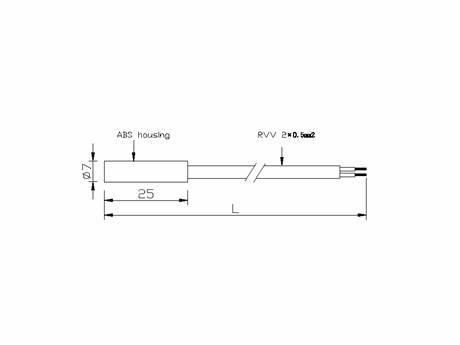

① SPT1 (Columned Plastic Cap Encapsulated Sensor)

Characteristics:
Plastic cap, Antisepsis, Short Thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance in low temperature

Application:
Icebox, Refrigeratory, Air-conditioner, Temperature Measurement and Display for Air and Water

Technical Parameter:
Working Temperature Range: -40℃~105℃
Dissipation Coefficient(δ): 4.2mW/℃
Thermal Time Constant(τ): ＜25s
Airproof Grade: IP67
(Special requested Resistance, B value and Tolerance could be offered)

B. SP Series (Non-Metal Materials Encapsulated Sensor)
⑵SPT Type (Plastic Cap Encapsulated Sensor)

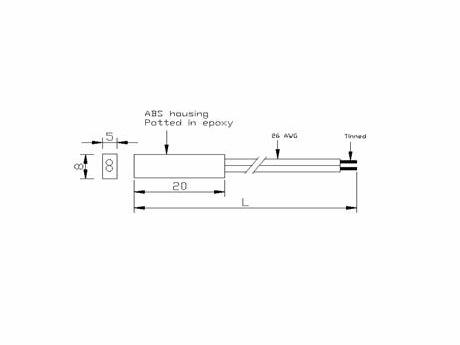

② SPT2 (Squared Plastic Cap Encapsulated Sensor)

Characteristics:
Plastic cap, Antisepsis, Short Thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance in low temperature

Application:
Icebox, Refrigeratory, Air-conditioner, Temperature Measurement and Display for Air and Water

Technical Parameter:
Working Temperature Range: -40℃~100℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜25s
High Voltage 4000V 1Min. Insulation Resistance>100M
(Special requested Resistance, B value and Tolerance could be offered)

B. SP Series (Non-Metal Materials Encapsulated Sensor)
⑵SPT Type (Plastic Cap Encapsulated Sensor)

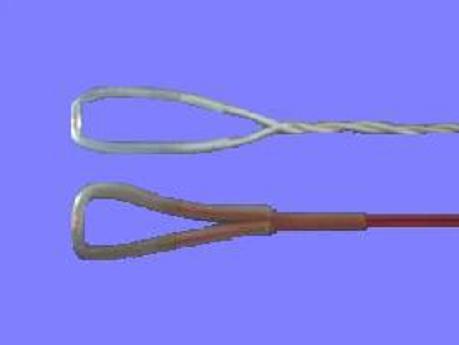

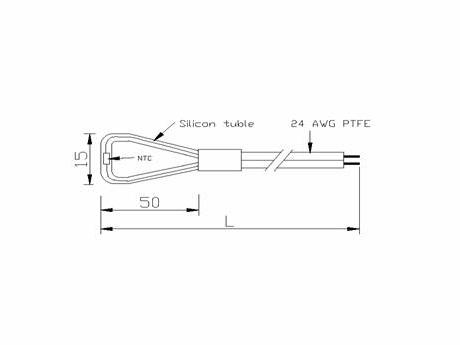

③ SPT3 (Silicon Tube Encapsulated Sensor)

Characteristics:
Silicon tube encapsulated, Enduring high temperature, Short thermal time constant, Low cost

Application:
Electric cooker, Water heater

Technical Parameter:
Working temperature range: -40℃~200℃
Dissipation coefficient （δ）: 5mW/℃
Thermal time constant（τ）: ＜15s
(Special requested Resistance, B value and Tolerance could be offered)
