C. SC Series (Copper Cap Encapsulated Sensor)

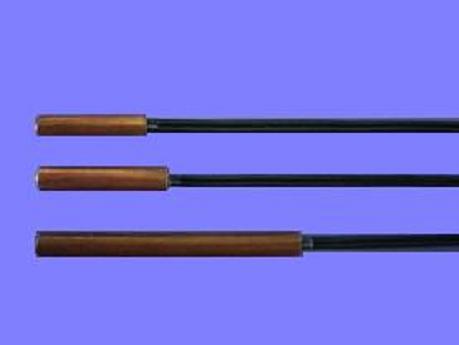

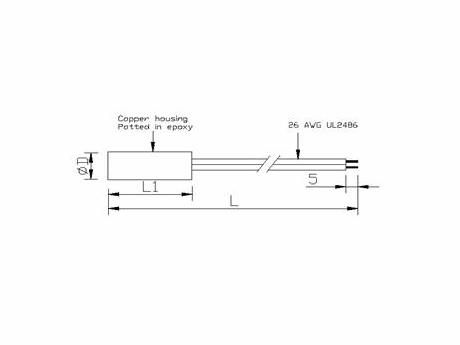

⑴ SC1 Type (Columned Copper Cap Encapsulated Sensor)

Characteristics:
Copper cap, Short thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance

Application:
Air-conditioner, Water heater

Technical Parameter:
Working temperature range: -40℃~120℃
Dissipation coefficient （δ）: 4mW/℃
Thermal time constant（τ）: ＜20s
(Special requested Resistance, B value and Tolerance could be offered)

C. SC Series (Copper Cap Encapsulated Sensor)

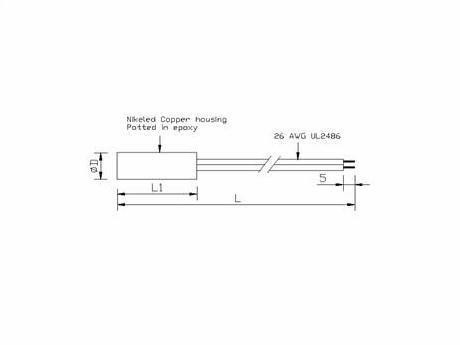

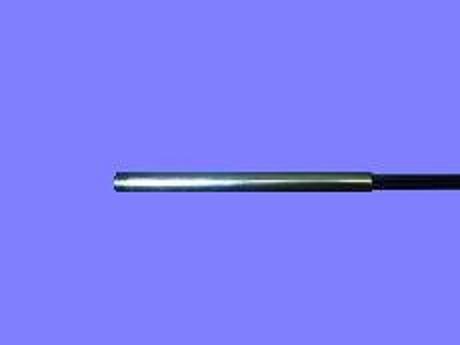

⑵SC2 Type (Nickel Plated Copper Cap Encapsulated Sensor)

Characteristics:
Nickel plated copper cap, Antisepsis, Short thermal time constant, Quick response, Low cost

Application:
Air-conditioner, Water heater

Technical Parameter:
Working temperature range: -40℃~120℃
Dissipation coefficient （δ）: 4.2mW/℃
Thermal time constant（τ）: ＜20s
Airproof grade: IP67
(Special requested Resistance, B value and Tolerance could be offered)

D. SS Series (Stainless Steel Cap Encapsulated Sensor)

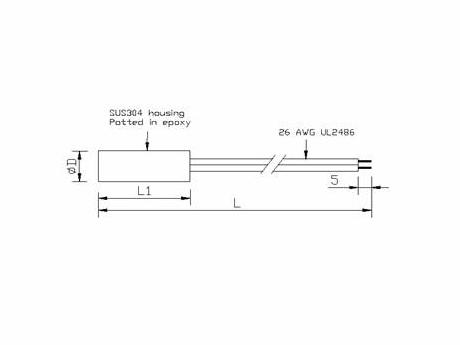

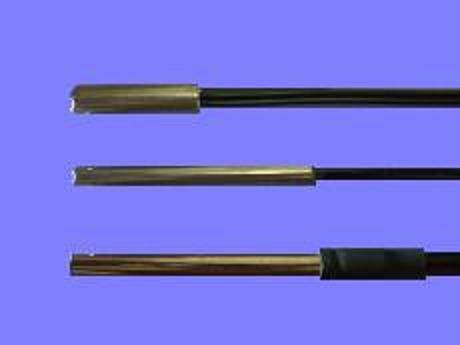

⑴ SS1 Type (Columned Stainless Steel Cap Encapsulated Sensor)

Characteristics:
Stainless steel cap, Antisepsis, Working in atrocious environment, Good dampness proofing, Reliable performance

Application:
Water heater

Technical Parameter:
Working temperature range: -40℃~120℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜20s
(Special requested Resistance, B value and Tolerance could be offered)

D. SS Series (Stainless Steel Cap Encapsulated Sensor)

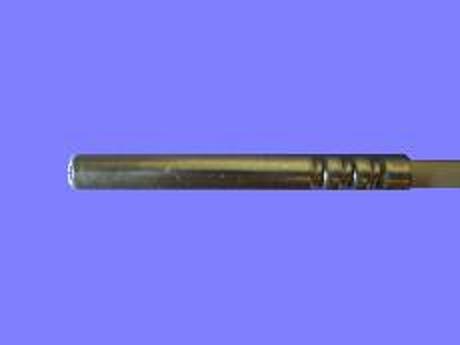

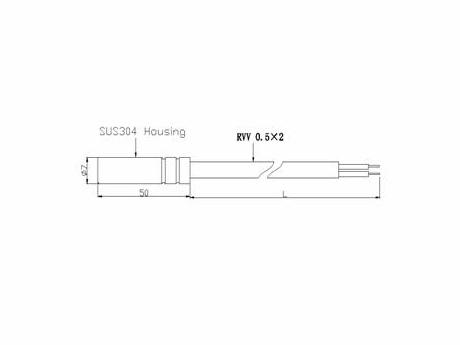

⑵ SS2 Type (Binding off Stainless Steel Cap Encapsulated Sensor)

Characteristics:
Stainless steel cap, Antisepsis, Working in atrocious environment, Good dampness proofing, Reliable performance

Application:
Water heater

Technical Parameter:
Working temperature range: -40℃~120℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜20s
(Special requested Resistance, B value and Tolerance could be offered)

D. SS Series (Stainless Steel Cap Encapsulated Sensor)

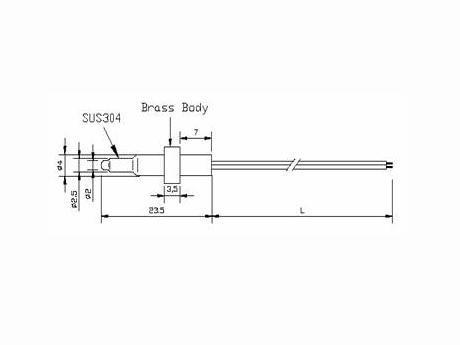

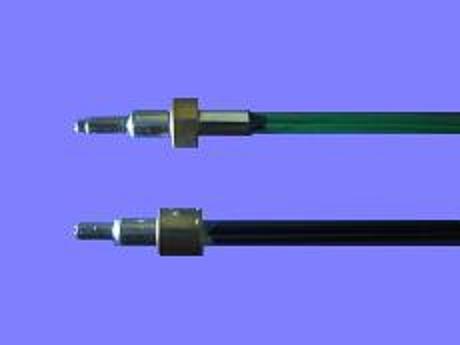

⑶ SS3 Type (Multiple Columned Stainless Steel Cap Encapsulated Sensor)

Characteristics:
Stainless steel cap, Antisepsis, Short thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance

Application:
Water heater, Coffee machine

Technical Parameter:
Working temperature range: -40℃~125℃
Dissipation coefficient （δ）: 4.2mW/℃
Thermal time constant（τ）: ＜3s in water
(Special requested Resistance, B value and Tolerance could be offered)
