Si RTD/Pt SENSORS

SPtZ1/ SPtS1 / SPtC1 / SPtS2 / SPtF1 / SPtF2 /

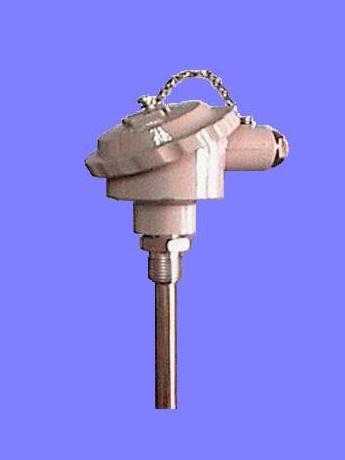

A. SPtZ1 Type (Assembled Pt Temperature Sensor)

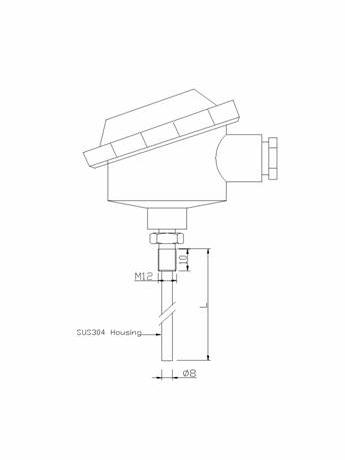

SPtZ1 TYPESPtZ1 TYPE DWG

Characteristics:
Combined by temperature sensitive element, stainless steel tube, junction box, fastness device and soon on, The sensor can measure liquid and gas temperature from -200~600

Application:
Widely used for temperature measurement of large machines and equipments in the industries of heat energy project, electric power, foodstuff, pharmacy, pressure vessel, petrol system, and baker, plastic chemicals, refrigeration
Baker, Roast Tunnel, Oven, Dryer, Constant Temperature Vessel, Bath Oven

B. General Purpose Pt Temperature Sensor
SPtS1 Type (Columned Shape Cap Encapsulated Pt Temperature Sensor)

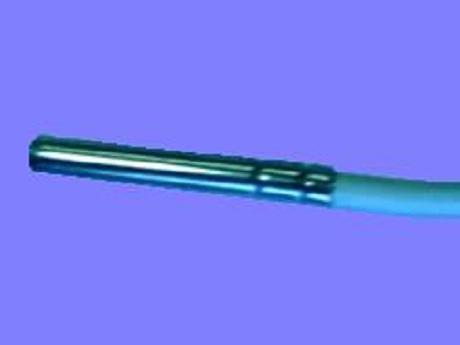

SPtS1 TYPE

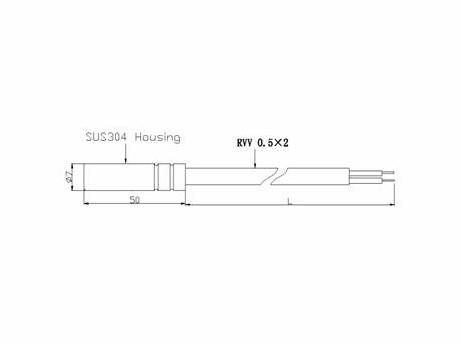

SPtS1 TYPE DWG

Model: SPt100AS2
Working Temperature: -50~300

Application:
Central Air-conditioner, Constant Temperature Vessel, Calorimeter









B. General Purpose Pt Temperature Sensor
SPtC1 Type (Screw Thread Cap Encapsulated Pt Temperature Sensor)

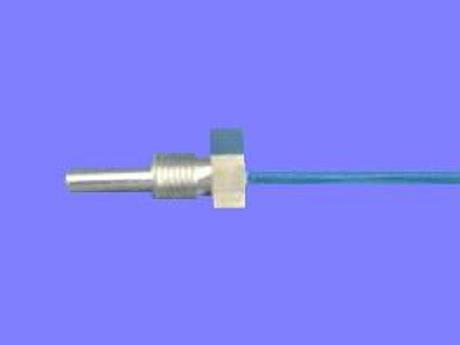

SPtC1 TYPE

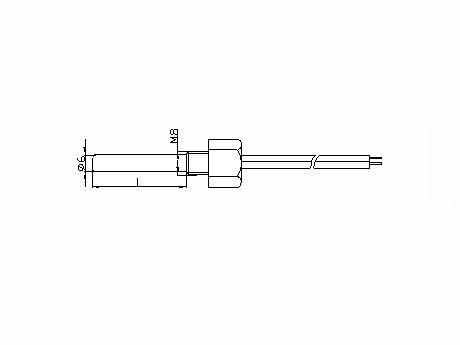

SPtC1 TYPE DWG

Model: SPt1000BC1
Working Temperature:-50~300

Application:
Central Air-conditioner, Disinfector, Constant Temperature Vessel, Bath Oven, Oven







C. SPtS2 Type (Bracket Cap Encapsulated Pt Temperature Sensor)

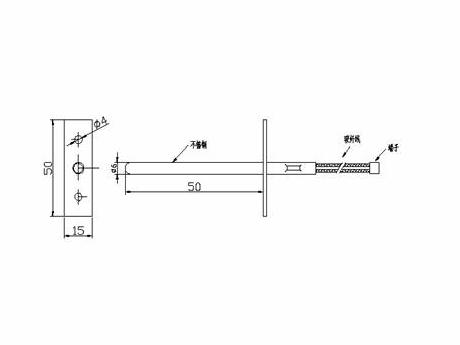

SPtS2 TYPE DWG

SPtS2 TYPE DWG

Characteristics:
Working Temperature Range: -50~500

Application:
Home Electric Appliance, Bath Oven, Oven
(Other types please refer to other part in the catalogue





D. Spring Fixed Pt Temperature Sensor
SPtF1 Type

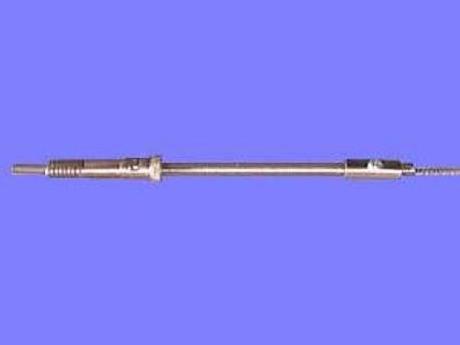

SPtF1 TYPE

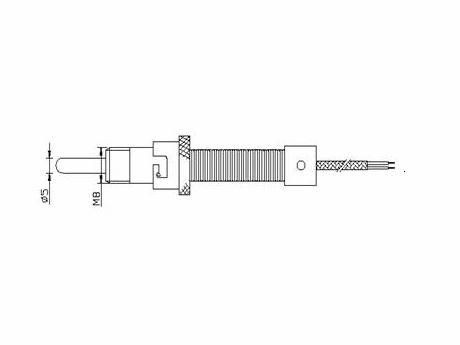

SPtF1 TYPE DWG

Characteristics:
The spring tightening structure could make the probe and the measured object touch each other closely, and temperature is quickly and accurately measured
Working Temperature Range: -20~500
Product Applied Criterion:
IEC751
JB/T8623-1997
JB/T8622-1991
Dielectric Insulation at Normal Temperature:>100M between electrode and coat, under 10~100VDC
Response Time: <8~15s
Sensitive Element:
Pt100Pt1000Pt500Class number: AB1/3B

Application:
Widely used in plastic machine, mould, bearing

D. Spring Fixed Pt Temperature Sensor
SPtF2 Type

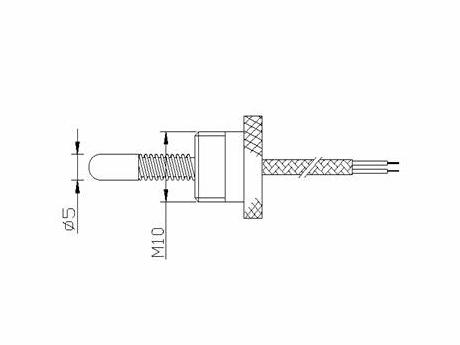

SPtF2 TYPE DWG

SPtF2 TYPE DWG

Characteristics:
The spring tightening structure could make the probe and the measured object touch each other closely, and temperature is quickly and accurately measured
Working Temperature Range: -20~500
Product Applied Criterion:
IEC751
JB/T8623-1997
JB/T8622-1991
Dielectric Insulation at Normal Temperature:>100M between electrode and coat, under 10~100VDC
Response Time: <8~15s
Sensitive Element:
Pt100Pt1000Pt500Class number: AB1/3B

Application:
Widely used in plastic machine, mould, bearing
