E.SN Series (Screw Thread Cap Encapsulated Sensor)

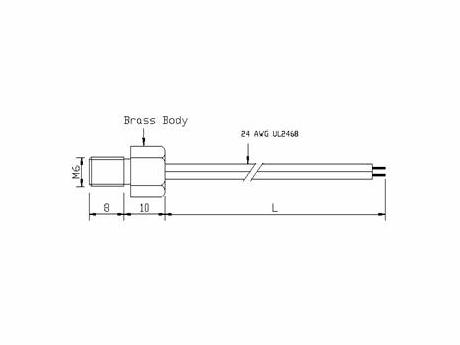

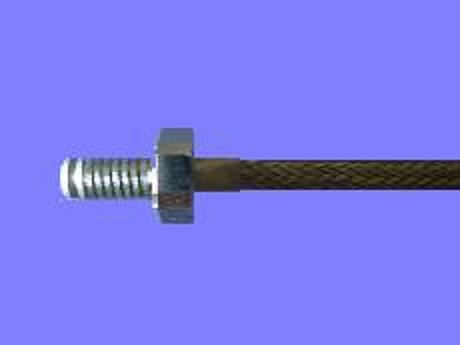

⑴SN1 Type

Characteristics:
Copper cap, Easy to install, Short thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance

Application:
Water heater, Soybean milk machine, Coffee machine

Technical Parameter:
Working temperature range: -40℃~120℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜30s
(Special requested Resistance, B value and Tolerance could be offered)

E.SN Series (Screw Thread Cap Encapsulated Sensor)

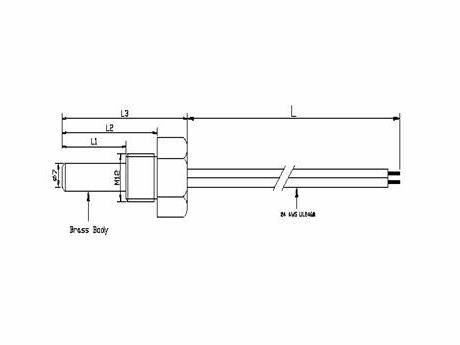

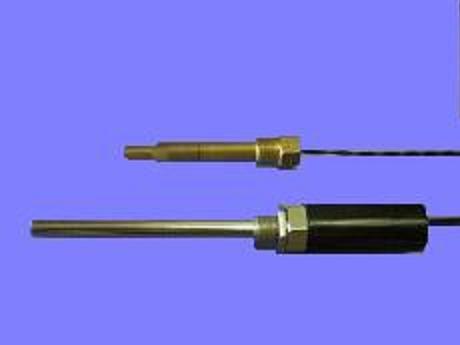

⑵SN2 Type

Characteristics:
Copper cap, Easy to install, Short thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance

Application:
Water heater, Soybean milk machine, Coffee machine

Technical Parameter:
Working temperature range: -40℃~120℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜30s
(Special requested Resistance, B value and Tolerance could be offered)

E.SN Series (Screw Thread Cap Encapsulated Sensor)

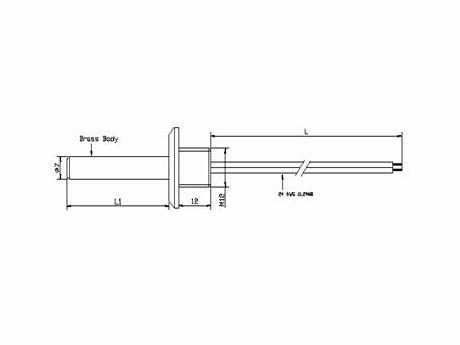

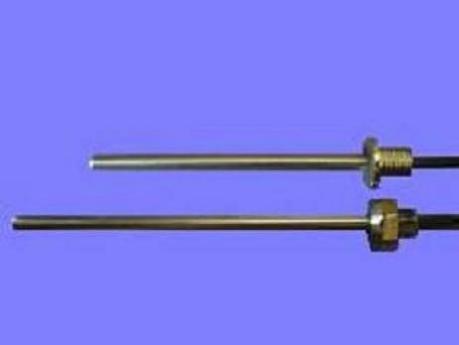

⑶SN3 Type

Characteristics:
Copper cap, Easy to install, Short thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance

Application:
Water heater, Soybean milk machine, Coffee machine

Technical Parameter:
Working temperature range: -40℃~120℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜30s
(Special requested Resistance, B value and Tolerance could be offered)

E.SN Series (Screw Thread Cap Encapsulated Sensor)

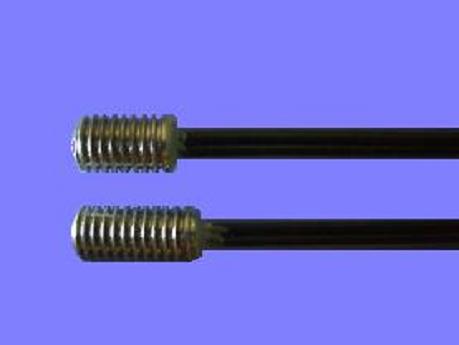

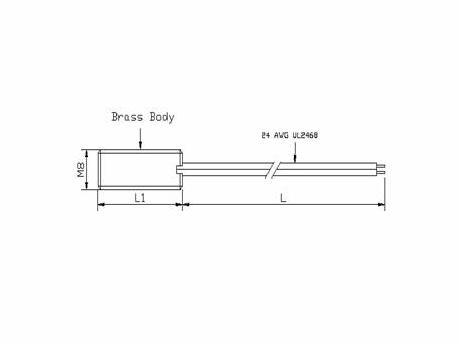

(4)SN4 Type

Characteristics:
Short thermal time constant, Quick response, Low cost, Good dampness proofing, Reliable performance

Application:
Water heater

Technical Parameter:
Working temperature range: -40℃~125℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜20s
(Special requested Resistance, B value and Tolerance could be offered)

F. SM Series (Surface Mounting Shape Sensor)

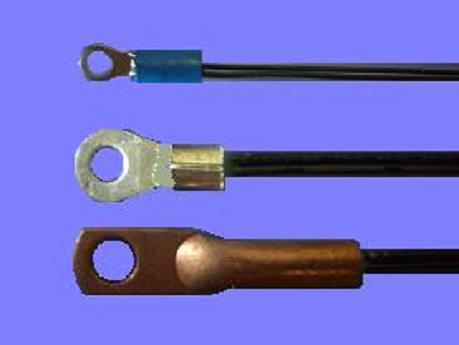

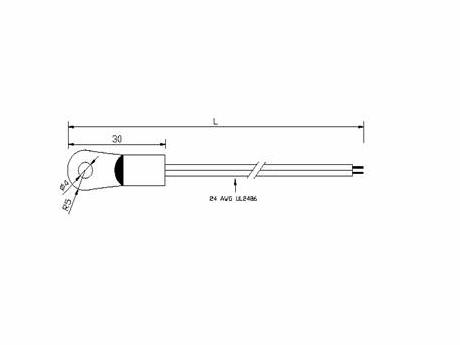

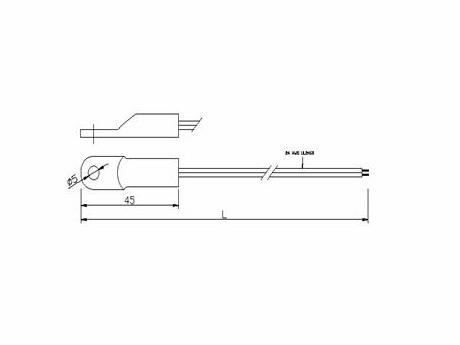

⑴ SM1 Type (O-Shape Cap Encapsulated Sensor)

Characteristics:
Quick response, Low cost, Reliable performance, Suitable for surface temperature measurement

Application:
Electronic products, Home electric appliance

Technical Parameter:
Working temperature range: -40℃~100℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜25s
(Special requested Resistance, B value and Tolerance could be offered)

F. SM Series (Surface Mounting Shape Sensor)

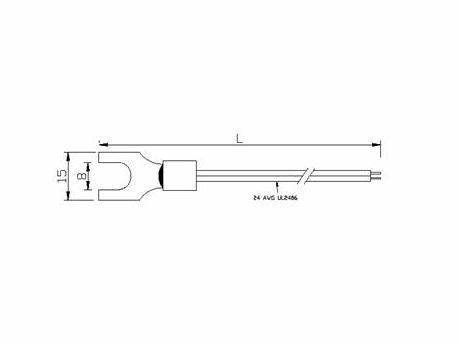

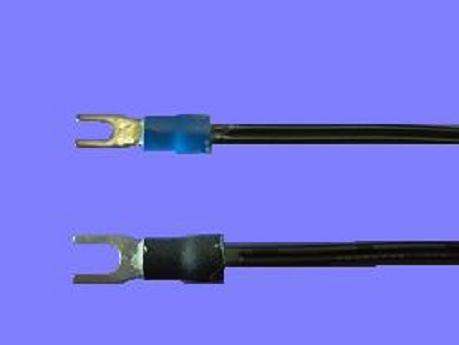

⑵ SM2 Type (U-Shape Cap Encapsulated Sensor)

Characteristics:
Quick response, Low cost, Reliable performance, Suitable for surface temperature measurement

Application:
Electronic products, Home electric appliance

Technical Parameter:
Working temperature range: -40℃~100℃
Dissipation coefficient（δ）: 4.2mW/℃
Thermal time constant（τ）: ＜25s
(Special requested Resistance, B value and Tolerance could be offered)
