PTC Temperature Sensor

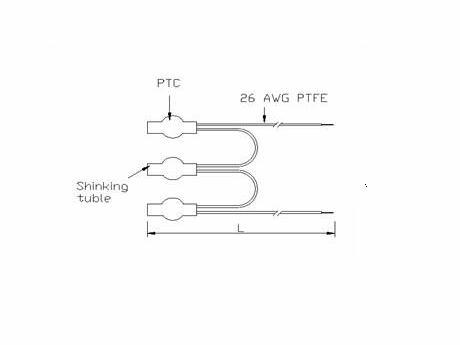

PTC SENSOR DWG







PTC SENSOR DWG

Technical Parameter:
Max Voltage: 30V
Protection Temperature Point: 60~130
Nominal Resistance Value: 100~330at 25棩
Resistance Value at Protection Temperature Point: 470~2200
Max Current: 100mA
Dielectric Voltage: 4000V 1min
Insulation Resistance: >100M@ 250VDC
Working Temperature Range: 25~250

Application:
Motor Temperature Protection, Bearing Temperature Measurement
